Today I want to give the scientific explanation for something we all love to see (especially if, like me, you live in a place as rainy as Manchester, England) – the blue sky. I will also discuss the colour of the skies on the Moon and Mars, two places where spacecraft have landed and taken photographs of their surfaces and skies.
A very rare event. A blue sky over our back garden!
The nature of light
You may remember from your high school science lessons that light is a form of electromagnetic wave.

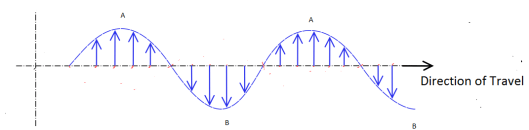

The diagram above shows a wave of light. The blue lines show the strength of the electric field. See note 1. The wavelength is the distance between successive peaks, marked as A in the diagram, or successive troughs, marked as B in the diagram. The wavelengths are so small that they are usually measured in nanometres (normally abbreviated to nm). 1 nm is equal to one billionth of a metre. The human eye is sensitive to light with wavelengths in the range of 380 nm to 750 nm and we see different wavelengths of light as different colours.

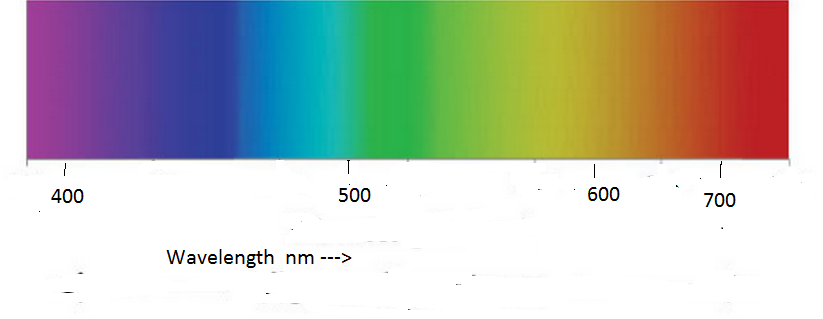

As shown in the diagram the eyes sees wavelengths of
- 380 nm to 430 nm as violet
- 430 nm to 450 nm as indigo (a deep blue)
- 450 nm to 500 nm as blue
- 500 nm to 570 nm as green
- 570 nm to 600 nm as yellow
- 600 nm to 630 nm as orange
- 630 nm to 750 nm as red
Most sources of light, including that from the Sun, produce light waves with a mixture of different wavelengths. If the amounts of light at different wavelengths (or colours) are present in roughly equal proportions then the eye sees the mixture of colours as white.
Scattering of blue light
In the late nineteenth century the British physicist Lord Rayleigh (1842-1919) explained a phenomenon which is now called Rayleigh scattering.

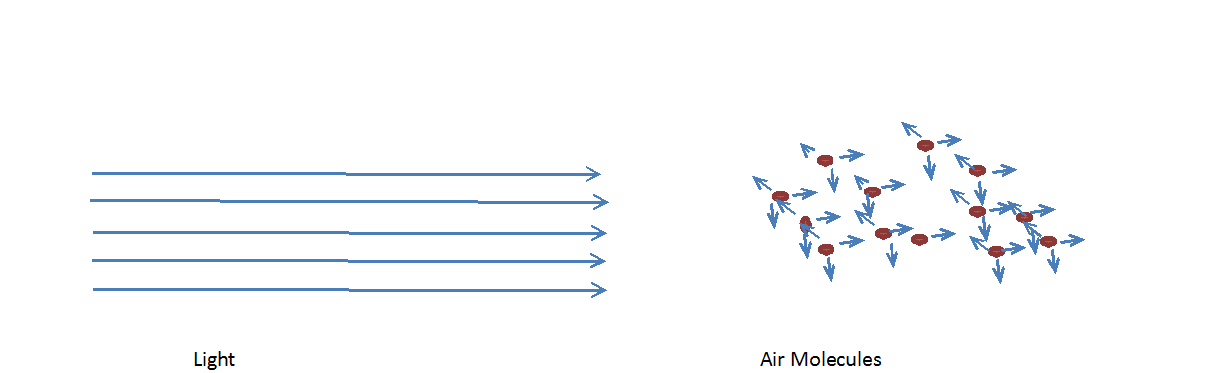

Rayleigh was able to show that when a beam of light, such as that from the Sun, passes through the air then a small amount of the light is scattered in all directions when it interacts with the individual molecules in the atmosphere. This is shown in the diagram below. See note 2.
Furthermore, he was able to show that the fraction of the energy in a beam of light which is scattered depends on two things:
- Firstly, the number of air molecules the beam of light encounters. The more air molecules or the greater amount of atmosphere which the light beam encounters, the greater the scattering.

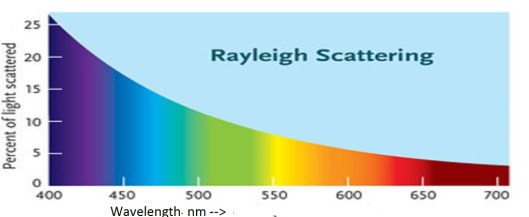

- Secondly, the shorter the wavelength of the light the greater the scattering. So if we take a beam of light such as that from the Sun, which contains multiple colours, then the shorter wavelengths (violet, indigo and blue light) are scattered more than the longer wavelengths such as orange and red. This is shown in the graph below.
This explains why the sky is blue. The blue sky we see is the blue light from the Sun which is re-emitted by the air molecules in all directions by Rayleigh scattering. One other thing that the diagram shows is that violet light has a shorter wavelength than blue and it is scattered even more. However, the Earth’s sky is not violet. This is because the strength of the Sun’s light isn’t the the same at all wavelengths. It contains relatively little violet light compared to blue. So, although violet light is scattered more in percentage terms than blue light, there is less violet light to scatter.
One other effect of scattering is that it makes the colour of the Sun to an observer on Earth appear to be yellow-orange, rather than white. Although the balance of the colours is such that the Sun’s light is white as it leaves the Sun’s surface, when it encounters the atmosphere scattering removes from direct sunlight a greater amount of the shorter wavelengths (violet, blue and green) than the longer wavelengths (yellow, orange and red) and the resulting mix of colours appears to be yellow rather than white. Interestingly, when astronauts view the Sun from space well above the Earth’s atmosphere it appears to be white.
Near sunrise and sunset, when the Sun is at a low angle in the sky, just above the horizon, the Sun’s rays have to pass through many hundred of kilometres of atmosphere before hitting the Earth’s surface. Because the Sun’s rays pass through much more atmosphere, the degree of scattering is much greater than when the Sun is higher in the sky at midday.
As shown in the table below, virtually all the shorter and medium wavelengths of light, (blue, green and yellow coloured light) are removed from the Sun’s rays, leaving only the longer wavelengths (orange and red). This explains why the Sun appears red near sunrise and sunset.
The sky on the Moon
The Moon has no atmosphere. Therefore there is no Rayleigh scattering of sunlight and the sky appears completely black during the day. The Sun appears to be whiter in colour because the shorter wavelengths are not removed from its light as they are on Earth.
Image from NASA
One interesting effect of having no atmosphere is that the Apollo astronauts who walked on the Moon found it very difficult to judge how far away objects were. On Earth, the atmosphere causes distant objects look slightly hazy, but this is not the case on the Moon. For example, astronauts were unable to estimate whether what appeared to be a hill was a small object 100 m high only 1 km away or a 2 km mountain 20 km away.
The sky on Mars
Mars has a very thin atmosphere. The air pressure on Mars is only 0.7% of that on Earth. There is far too little atmosphere for Rayleigh scattering to be an important effect. Indeed before the first space probes landed on Mars back in 1976 many space scientists expected that the sky on Mars would be black. In fact the sky on Mars is a pale reddish brown colour. This is due to small particles of reddish brown iron oxide dust suspended in the Martian atmosphere.
The surface of Mars – Image from NASA
- Light also has a magnetic field which is always at right angles to the electric field. To simplify the diagram this is not drawn.
- The mathematics behind Rayleigh scattering is too detailed to go into in this post. The link below gives more information:
