SpaceX Starlink Satellites

Many of you will have seen the pictures last year showing long ‘trains’ composed of as many as sixty SpaceX Starlink satellites crossing the sky.

A ‘train’ of SpaceX Starlink satellites just after their launch. In the days after launch these trains break up as the satellites position themselves into their final orbits

These satellites are being launched to deliver broadband to every corner of the globe.  180 have already been sent into orbit at the time of writing this post.

Last year SpaceX came under fire for their brilliance. They had magnitudes of 2 to 3, which was much brighter than had been expected.  For those of you not familiar with the term magnitude, see the notes at the bottom of this post.

SpaceX is experimenting with a new dark coating that will reduce the brightness of the satellites. However, of the 60 new satellites sent up in early January 2020, only one had the dark coating. Astronomers won’t know fully the effects of the new coating until late February when the darker satellite has reached its operational orbit. To mitigate matters further SpaceX have also agreed to share  co-ordinates of the spacecraft so that observations can be planned to avoid the objects if  possible.

The purpose of the satellites is to provide worldwide fast Internet coverage. Traditional satellite internet operators have a small number of satellites  in geostationary orbit, 35,800 km above the  Earth’s surface. This limits speed, coverage and bandwidth. It takes around 0.12 seconds for radio-waves to travel between the satellite and Earth.  SpaceX’s plan is to surround the Earth with a large number of satellites in Low Earth Orbit (LEO). These would link together into a ‘floating internet backbone’, providing a faster alternative to the fibreoptic  cables that span the world.

By the year 2025 SpaceX plan to have 12,000 Starlinks in orbit distributed as follows

  • 7,500 at 340 km altitude
  • 1,600 at 550 km altitude
  • 5,800 at 710 km altitude

According to a report on space.com ,SpaceX have sought permission to put an additional 30,000 Starlink satellites into orbit. If this were approved and the satellites were launched, it would bring the total number up to 42,000. To put this in perspective, in December 2019 there were only 2,200 operational satellites orbiting the Earth, of which 1,418 were in LEO, which is defined as an orbit below 2,000 km, (data from Union of Concerned Scientists (2019)).

Image credit (Union of Concerned Scientists 2019)

In the map above

  • The dark orange countries are able to launch their own satellites into space
  • The light orange countries have satellites but are dependent on other countries to launch them
  • The grey countries do not have satellites



Other Operators

High speed satellite broadband is likely to be a big growth area in the next 10-15 years.  By 2030, the market is likely to be worth tens of billions of dollars per annum, possibly even more. So, it is not surprising that other companies are planning similar large LEO satellite constellations. These include the following.

  • One Web who have planned an initial constellation of 800 satellites.
  • Amazon last year announced project Kuiper – a constellation of 3000 satellites.
  • Samsung announced in 2015 they were considering having a constellation of ‘thousands of satellites’ . However,  they appear to have not progressed this proposal much in the last five years.
  • The Canadian company Telesat are planning to launch a satellite broadband service in 2022. Although, at the time of writing, they have not announced how many LEO satellites they will have.

Image credit https://www.telesat.com/



Impact on astronomy

There has been much written in the press recently about the impact of these satellite constellations on astronomy. Compared to astronomical objects and also satellites in higher orbits, LEO Satellites move rapidly across the sky and are in general brighter than other satellite because they are closer to Earth. In raw astronomical images they are sometimes captured as they move across a telescope’s field of view. Whenever this happens, they appear as bright streaks, looking a little like meteor trails. However, Image processing software used by astronomers (including amateurs) can identify satellite tracks and strip them out of the final images.

This might present more of an issue if the number of LEO satellites were to increase twenty-fold in the next ten years. Rather than an image occasionally containing a single satellite trail, a typical image would contain multiple trails as numerous satellites crossed the field of view. There also might be  potential problems with wide field surveys such as the LSST (which is such a large topic I’m going to talk about it in detail in a future post). The  LSST telescope, which is scheduled to be completed in 2022, will have a large field of view and very sensitive detectors which inevitably means that it will capture many satellites in its images.

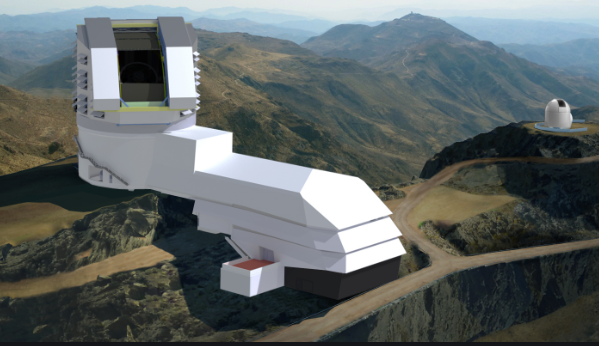

What the Large Synoptic Survey Telescope will look like when it is completed in 2022 -image credit LSST

Data from https://www.lsst.org/



The impact on radio astronomy should ideally be very low. This is because all the new satellites should transmit outside the protected frequencies reserved for the use of radio astronomers. There are many of these protected bands including the region around 1420 MHz known as ‘the 21-cm hydrogen line’ and 22.2 GHz,  which is a frequency at which interstellar water vapour clouds  emit radio waves.

In May 2019 the director of the National Radio Astronomy Observatory (NRAO) Tony Beasley put out a carefully worded statement (https://public.nrao.edu/news/nrao-statement-commsats/)

Recent news reports of planned constellations of communication satellites, including the SpaceX Starlink proposal, have pointed out the potential impacts these systems may have on radio astronomy. For decades, the U.S. National Radio Astronomy Observatory (NRAO) and the Green Bank Observatory (GBO), in cooperation with the National Science Foundation, have worked to ensure that innovations in communications can advance while still preserving our ability to explore the Universe from Earth and conduct essential fundamental research through radio astronomy…..’

‘….Most recently, the NRAO and GBO have been working directly with SpaceX to jointly analyze and minimize any potential impacts from their proposed Starlink system. These discussions have been fruitful and are providing valuable guidelines that could be considered by other such systems as well. To date, SpaceX has demonstrated their respect for our concerns and their support for astronomy.’



It will be interesting to see how things develop over the next decade and how big the impact on ground-based astronomy turns out to be, but what is certainly clear to me is that satellite broadband  is likely to become more and more important over the next decade.



Reference

Union of Concerned Scientists (2019) UCS Satellite Database, Available at: https://www.ucsusa.org/resources/satellite-database (Accessed: 24 January 2020).



Note for non-astronomers.

When measuring the brightness of objects in the sky, astronomers use a scale called magnitude, where the lower the magnitude valuethe brighter the object.  The scale was invented by the ancient Greek astronomers who classified all the stars visible to the naked eye into six magnitudes. The brightest stars were said to be of magnitude 1, the next brightest magnitude 2 and so on. The faintest stars visible to the naked-eye were given a  magnitude of 6.

Values in the magnitude scale were standardised  by nineteenth century astronomers  to make an increase in magnitude of 5 a decrease in luminosity of factor of 100. So for example, a star of magnitude 6  is  a hundred times fainter than one of magnitude 1.  The brightest star in the night sky Sirius has magnitude -1.4. The first artificial satellite Sputnik had a magnitude of around 6 – making it just about visible to the naked eye in an area without significant light pollution

10 thoughts on “SpaceX Starlink Satellites”

  1. I was interested to hear on saturday (at Astrofest) a super talk by Johann-Dietrich Wörner, Director-General ESA, that Europe will develop the first space-debris removal missions. There are plans that some of the rocket/satellite components launched in the future, will have an automated self-returning mechanism built in.

    Like

  2. I was wondering the same thing as Barbara. At some point, some of these satellites will break down or get damaged in some way. How much of a collision problem is this going to create for future launches?

    Liked by 1 person

  3. Great summary on the situation with expansion of satellites, And very topical, seeing that there is a “near-collision” in the news (0.1-1% chance has been quoted). Time for pro-active clean-up of debris out there – I wonder if funding is being set aside for that.

    Liked by 2 people

    1. Thanks Barbara,
      You make an interesting point
      If high speed satellite broadband proves to be profitable AND if the market grows according to the most optimistic projections we could have an many as 50,000 satellites in Low Earth Orbit.

      The risk of collision between two satellite in a given year which (in a simplified model) is roughly to proportional to the number of satellites squared would obviously be very significant

      Like
