For those of us in the Northern Hemisphere we are at the time of year when there is the most daylight. In this post I’ll talk about the long long summer evenings: not only does the Sun set later at this time of year but the amount of twilight, when the Sun has set but it is not fully dark, is greatest.
What is twilight?
As discussed in a previous post twilight is the period of time in the evening or early morning when, although the Sun is below the horizon because it has set or not yet risen, its rays can still hit the upper atmosphere causing the sky to glow faintly, so it isn’t completely dark. Twilight is divided into three stages: civil twilight, nautical twilight and astronomical twilight
How quickly it gets dark at different times of year

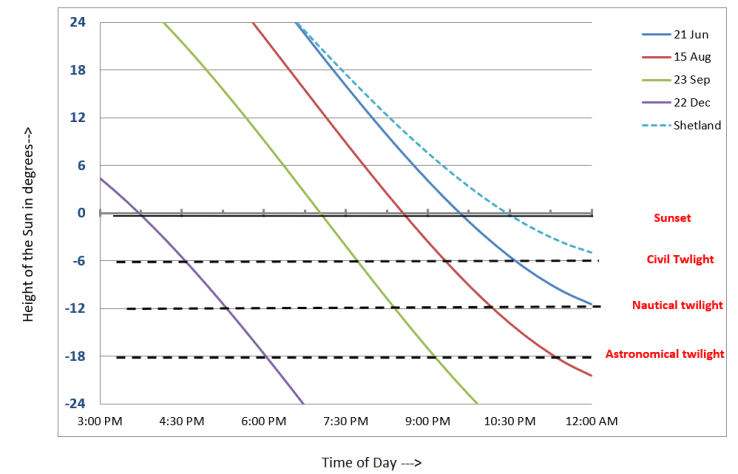

The four solid lines in the diagram below shows how the elevation of the Sun, measured in degrees, changes during the afternoon and evening in Manchester, England, which has a latitude of 53.5 degrees north, on different dates in the year.
- The blue line shows the path of the Sun at the June solstice
- The brown line shows the path of the Sun in the middle of August
- The green line shows the path of the Sun at the September equinox
- The purple line shows the path of the Sun at the December solstice
In Manchester, like many places in the world, we put our clocks forward in the summer months. This means the Sun is not at its lowest elevation at midnight. On the night of 21/22 June the Sun reaches its lowest elevation in the sky at 1:10 AM (and at its highest point in the sky at 1:10 pm not 12-noon). In Manchester astronomical twilight occurred for two hours on the night of 21/22 June 2019 between the hours of 0:10 am and 2:10 am, which is why it is not shown on the graph above
In Manchester, at the summer solstice, the Sun rises at 4:39 am in the north east. It ascends in the sky to reach a maximum elevation of 60 degrees at midday. It then descends, setting in the north west at 9:41 pm. As it sets it is moving at a shallower angle to the horizon and thus decreasing in elevation more slowly compared to other times of year. It is this which causes the lengthy twilight around the time of the June solstice..
Some actual values for these four dates are shown in the table below.
As you can see, in Manchester the sky never gets completely dark on the days around the June solstice. The Sun never drops more than 13 degrees below the horizon. So, the darkest it can ever get is astronomical twilight.
Further south, below a latitude of 48.5 degrees north, the Sun drops more than 18 degrees below the horizon, and it gets fully dark, although the duration of twilight is still considerably longer around the June solstice than at other times of the year.
My wife and I have spent most of June 2019 near the village of Vidlin in the Shetland Islands – halfway between mainland Scotland and Norway. At this latitude (60.5 degrees north) on the solstice, the Sun rises at 3:33 am at sets at 10:39 pm giving 19 hours and 6 minutes of daylight and for the remainder of the time it gets no darker than civil twilight. In Shetland the period in the middle of the night when it doesn’t get properly dark is called the Simmer Dim.
This photo was taken by my wife just before midnight. I was fast asleep at this time 😉
Every year on the days around the June solstice there is a Simmer Dim festival in Shetland where hundreds of bikers come from all over Europe to celebrate the light nights by eating, drinking and listening to music. Sadly We being in our 50s and now middle aged need our sleep and prefer being tucked up in bed!
Simmer Dim Festival 2018
I hope you have enjoyed this post and that those of you who live well north of the equator, like us, are enjoying the long summer nights.
Note
For my more mathematically inclined readers, the elevation of the Sun at a given time is given by the following formula:
sin(EL) = sin(DEC)*sin(LAT)+cos(DEC)*cos(LAT)*cos(HA)
where
- EL is the elevation or height of the Sun measured in degrees
- DEC is the declination of the Sun. This changes throughout the year as the Earth moves around the Sun in its orbit. At the June solstice the Sun has a declination of +23.5 degrees, at the equinoxes it is zero and at the December solstice it is -23.5 degrees
- LAT is the latitude of the observer
- HA is the hour angle. it the number of hours since the solar noon (when the Sun is highest is sky) multiplied by 15. So, 2 hours after the solar noon is an hour angle of 30 degrees, 3 hours before the solar noon is an hour angle of -45 degrees
Explaining Science
Thank you for the interesting article. For our latitude in Kansas City, 39 deg N, the tables give us the longest twilight during the summer solstice, which you clearly explained. There is also a secondary maximum during the winter solstice (but less than in summer), with the shortest twilight during the equinoxes. I’ve come up with the following: The point on earth directly below the sun traverses the globe slightly slower during both solstice’s and fastest during the equinoxes. The solstice declinations are 23.4 deg so COS(23.4) ~0.918 so the zenith point of the sun on the earth moves 91.8% as fast on Dec and Jun 21 vs. the equinoxes yielding longer times to fall below the horizon. But why is the winter twilight time less than the summer?
LikeLike
Thank you for your comment.
The reason why summer twilight lasts longer than winter twilights is because the path the Sun traces BELOW the horizon is shallower at the summer equinox than at the winter equinox.
So it takes longer to drop down to an elevation of minus six degrees (end of civil twilight), minus twelve degrees (end of nautical twilight) and minus eighteen degrees (end of astronomical twilight).
LikeLike
Hi Steve, I hope you are doing well!
I am really trying to investigate an important matter, to do with astronomy!
Firstly I would like to ask, if “days around the June solstice. The Sun never drops more than 13 degrees below the horizon.” how come astronomical twilight lasts for so long? if its only touching the astronomical area by one degree?
Secondly, a very important matter to do with nautical and astronomical twilight: there is a description in the twilight that I would like to confirm, it is to do with the false dawn and real dawn, the description of this is: “until the white thread becomes distinct unto you from the black thread at dawn” would this be possible to view in astronomical or nautical twilight?
I know this may sound confusion but I would be delighted if we could correspond via email ?
LikeLike
At the June solstice the Sun is travelling below the horizon at a very shallow angle. This why it takes an hour to drop from the start of astronomical twilight -12 degrees elevation (at 00:10 am) to -13 degrees elevation (which 01:10 am) and another hour to ascend to -12 degrees elevation when astronomical twilight finishes.
With regard to your second point it may be depend on quality of your eyesight !!
LikeLike
[…] at 5:45 am, however in fact it begins getting mild nicely earlier than then. In actual fact the first stage of twilight, when the Solar’s first rays illuminate the jap sky begins at three:00 am . Nonetheless this 12 […]
LikeLike
[…] 2020 occurs at 5:45 am, but of course it starts getting light well before then. In fact the first stage of twilight, when the Sun’s first rays illuminate the eastern sky begins at 3:00 am . However this […]
LikeLike
Hi Steve really like your work, could you kindly explain this :
Your line chart shows that there is no astronomical twilight in June, however your tables show there is a astronomical twilight.
Could you kindly explain?
LikeLiked by 1 person
Thank you for your interesting comment and I am glad you are enjoying my blog. By ‘line chart’ I assume you are referring to the Sun elevation graph for 21 June 2019 in Manchester 😊. The reason why there is no astronomical twilight for Manchester (latitude 53.5 Degrees north) on 21 June shown in the graph even though Manchester does have astronomical twilight is fairly simple.
In Manchester, like many places in the world, we put our clocks forward in the summer months. This means the Sun is not at its lowest elevation at midnight. On the night of 21/22 June the Sun reaches its lowest elevation in the sky at 1:10 AM (and at its highest point in the sky at 1:10 pm not 12-noon). In Manchester astronomical twilight occurred for two hours on the night of 21/22 June 2019 between the hours of 0:10 am and 2:10 am. So if I had extended the time axis on the diagram to 1 AM rather than cutting it off at midnight, then it would have shown some astronomical twilight for Manchester
To make things clearer I have put a note under the graph to reflect this.
Steve
LikeLiked by 1 person
